The GRATING WORLD RAILEX® handrailing systems carbon steel specifications are 34mm handrail tube and 42mm stanchions.

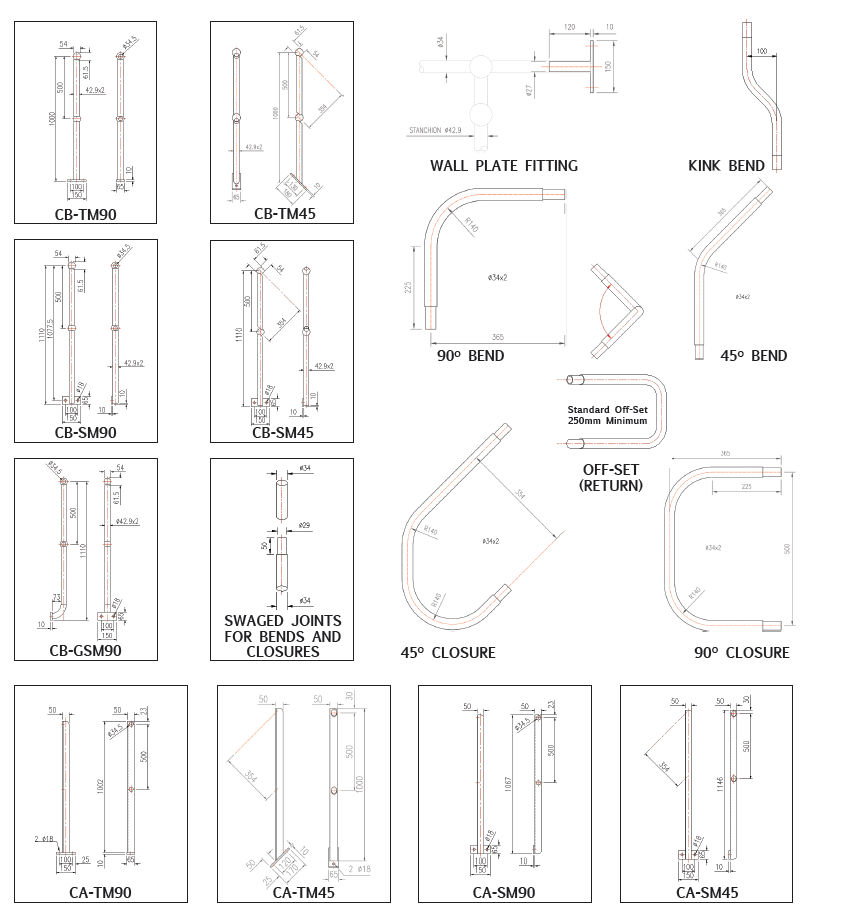

Tube connectors are available in 90 degree bends, 45 degree bends, and as 90 degree and 45 degree closures (to connect end runs of upper and lower handrails). Also available are wall plate fittings, kink bends, and off-sets.
Ball stanchions are floor (top) mount at 90 degrees (B-Tm90) and 45 degrees (B-Tm45), side-mount (B-Sm90), and goose-neck mount (B-GSm90). Ball stanchions may be ordered with handrail angles at up to 45 degrees.
Angle stanchions are available in top-mounted and side-mounted versions.
Finishes in Carbon Steel – Mill finished, Painted, Powder coated, Galvanised
* Carbon Steel Solid Forged stanchions available on request
